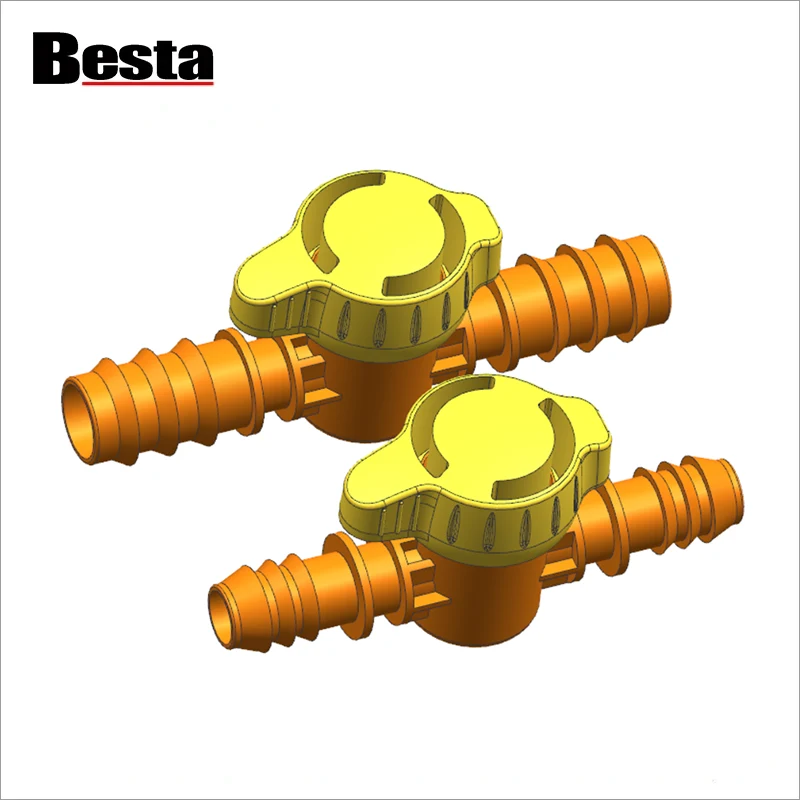

Irrigation mini valve has many different types, this type without sealing ring, it's the most popular type in the market at present, it's new design, price is cheaper, and very good quality, no any leakage, there has two different materials in the market, PP and POM, both are ok. About mini valve mold, we use standard mold base, cavity with 718H or H13 steel, mini valve body mold with 3plates design, hot or cold runner, normal 4cavity, the core use beryllium bronze is better, HRC38, better than water cooling, the mini valve handle mold also use standard mold base, normal with 8cavity, subgate, cold runner is ok. We can design one size just one body valve mold, use changable inserts to change different type, it's easy to change the cavity at the injection machine, by this way can help customer produce many different type in one mold, can save mold cost, also can use same handle for different size.As the professional manufacture, we would like to provide you high quality PP/POM Mini Valve Mold. And we will offer you the best after-sale service and timely delivery.
About PP/POM Mini Valve Mold
Paglalarawan ng produkto |
bagong disenyo mini balbula para sa micro irrigation, walang o-ring |
Nababago ang laki |
use changalbe insert to produce different size in same valve body mold |
Posisyon ng tatak |
sa ibabaw ng mini valve handle |
Batayan ng amag |
LKM, HASCO, DME o sa kahilingan ng customer, karaniwang base ng amag |
Cavity number |
mini valve body na may 4 o 8 cavities, handle na may 8 cavities |
Cavity at core na bakal |
718H, P20H, H13, 2316 etc. |
Disenyo ng software |
AT, Auto CAD atbp. |
Plastic material |
PP o POM |
Mold gate |
valve handle na may sub gate, valve body na may pin point gate |
Mold runner |
Malamig na runner o mainit na runner |
Sistema ng paglamig |
Water cooling or Beryllium bronze cooling |
Paggamot ng init |
Quenching, nitriding |
Ibabaw ng amag |
EDM, texture, high gloss polishing |
Katigasan ng lukab |
HRC28~60 |
Buhay na amag |
>300,000 shot |
Lead time |
45~60days |
Pag-iimpake ng amag |
Karaniwang export na kahoy na kaso |
